Description

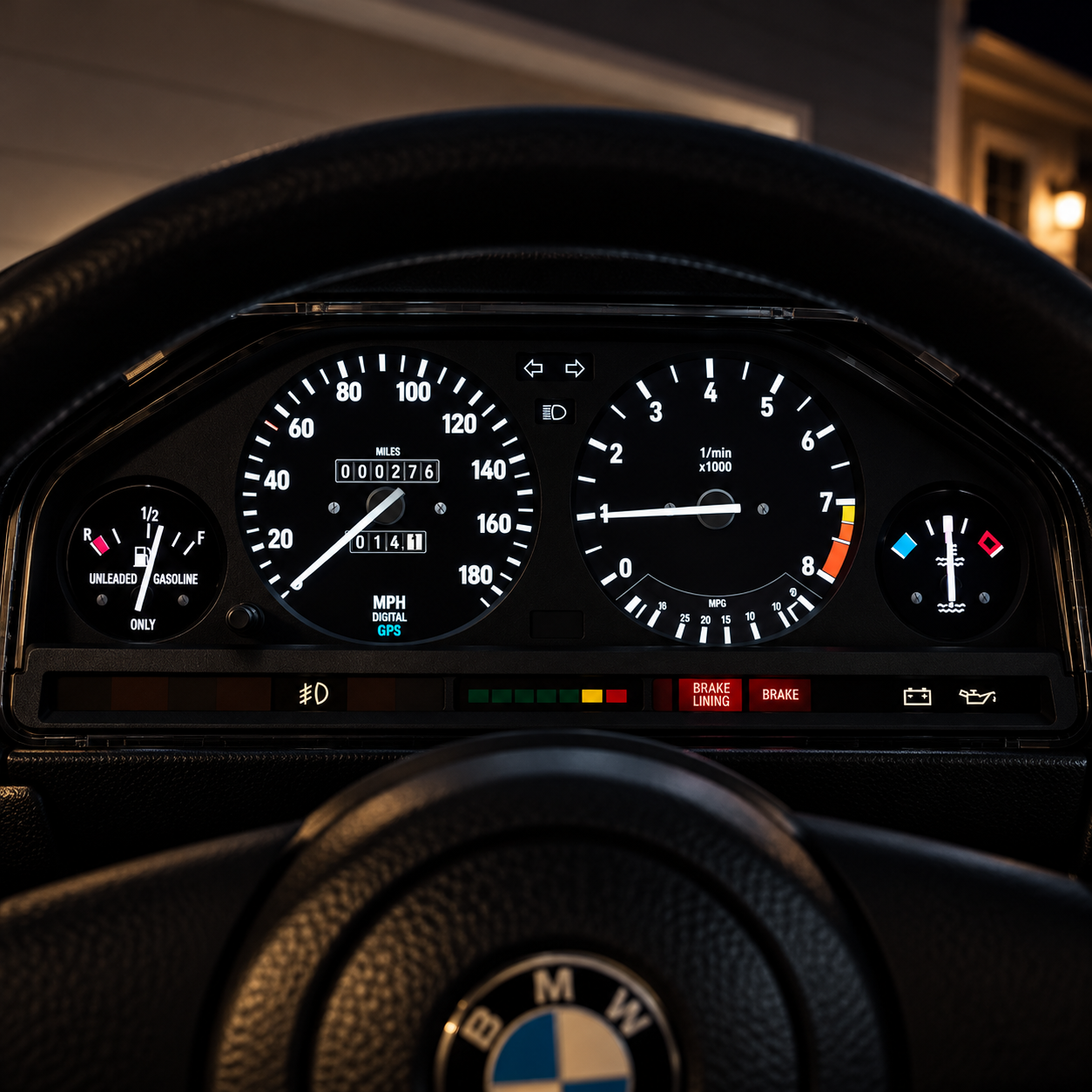

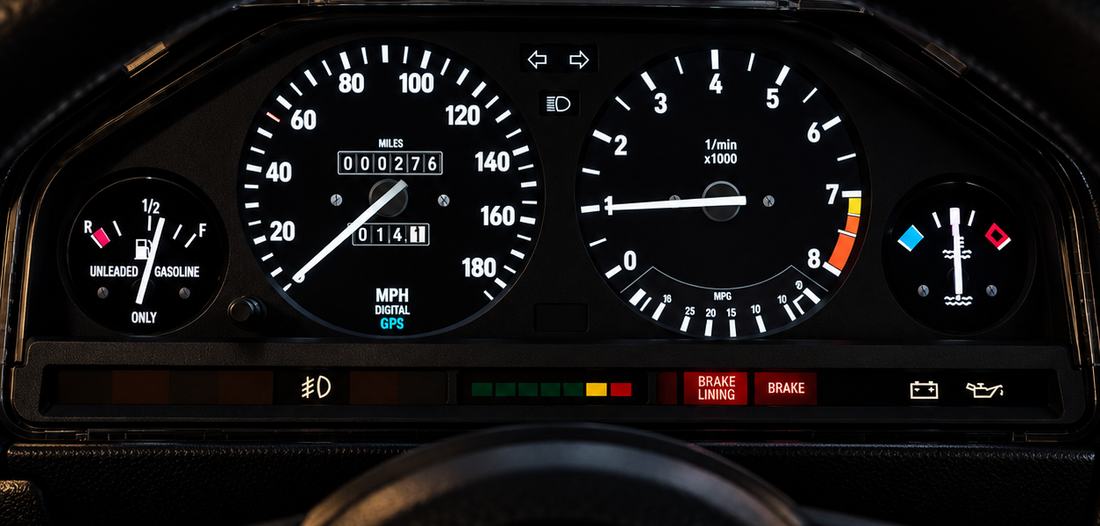

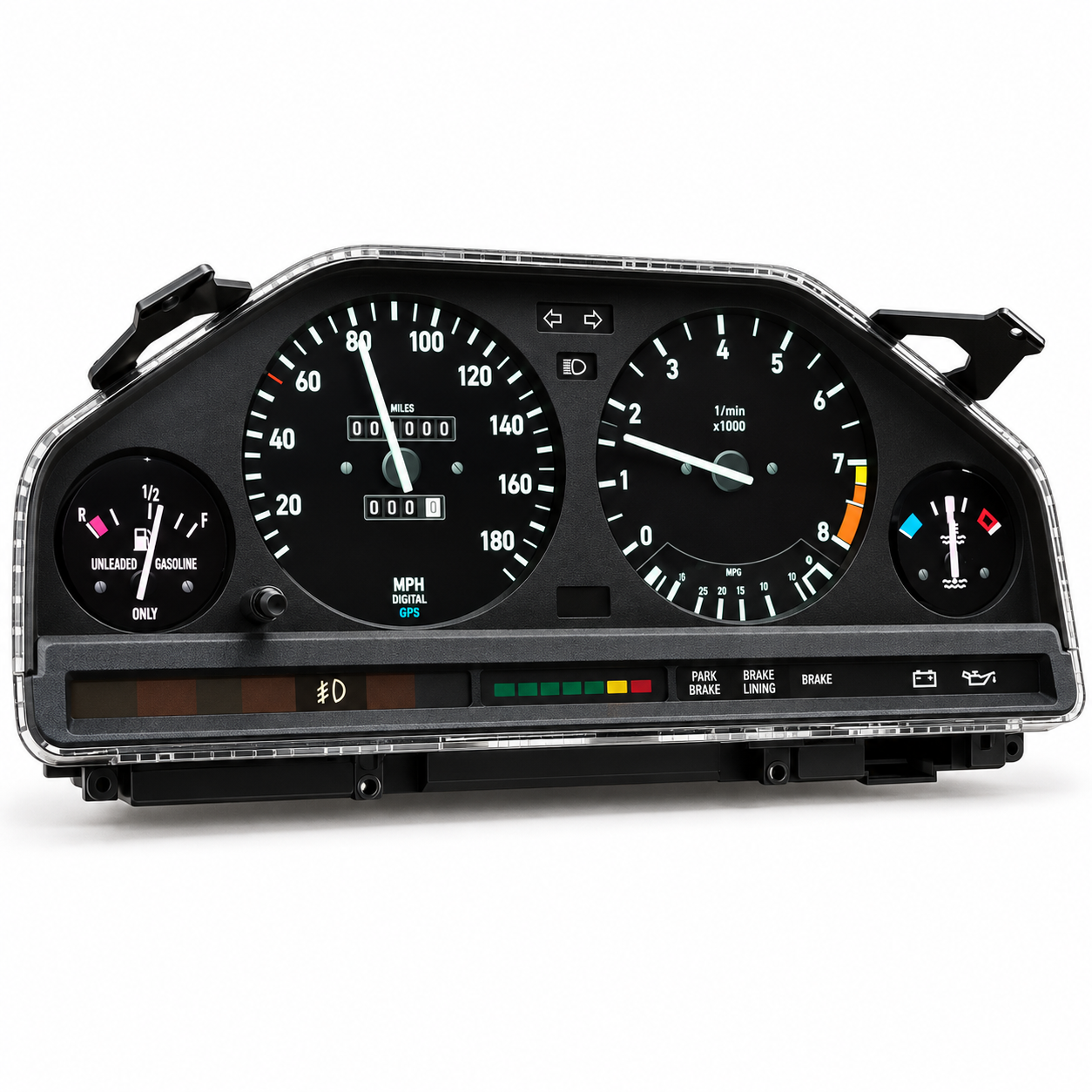

BMW E30 Digital Instrument Cluster — OEM-inspired appearance, modern digital performance. A complete digital cluster developed for BMW E30 enthusiasts, restorations, turbo builds and compatible engine swaps. Designed with a dedicated housing and factory-style connectors, allowing you to retain your original cluster without sending it away for conversion.

PRE-ORDER — NOT READY FOR IMMEDIATE DISPATCH. Full payment is collected when your pre-order is placed. Estimated release and dispatch dates, confirmed vehicle compatibility, final contents and the applicable pre-order terms must be provided before checkout is enabled.

Why choose this E30 digital cluster?

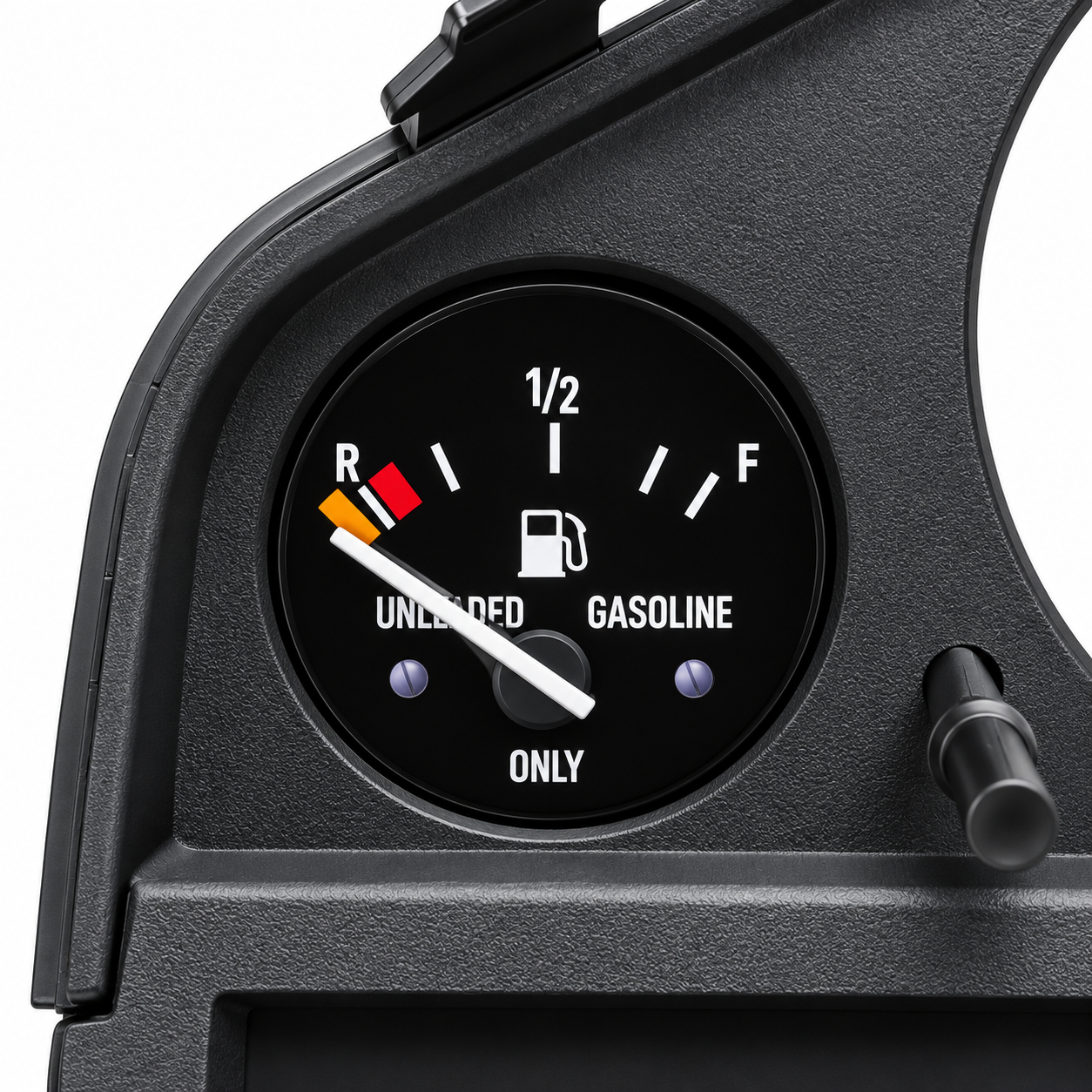

• Classic looks: OEM-inspired gauge faces with configurable readouts, warning zones and display layouts.

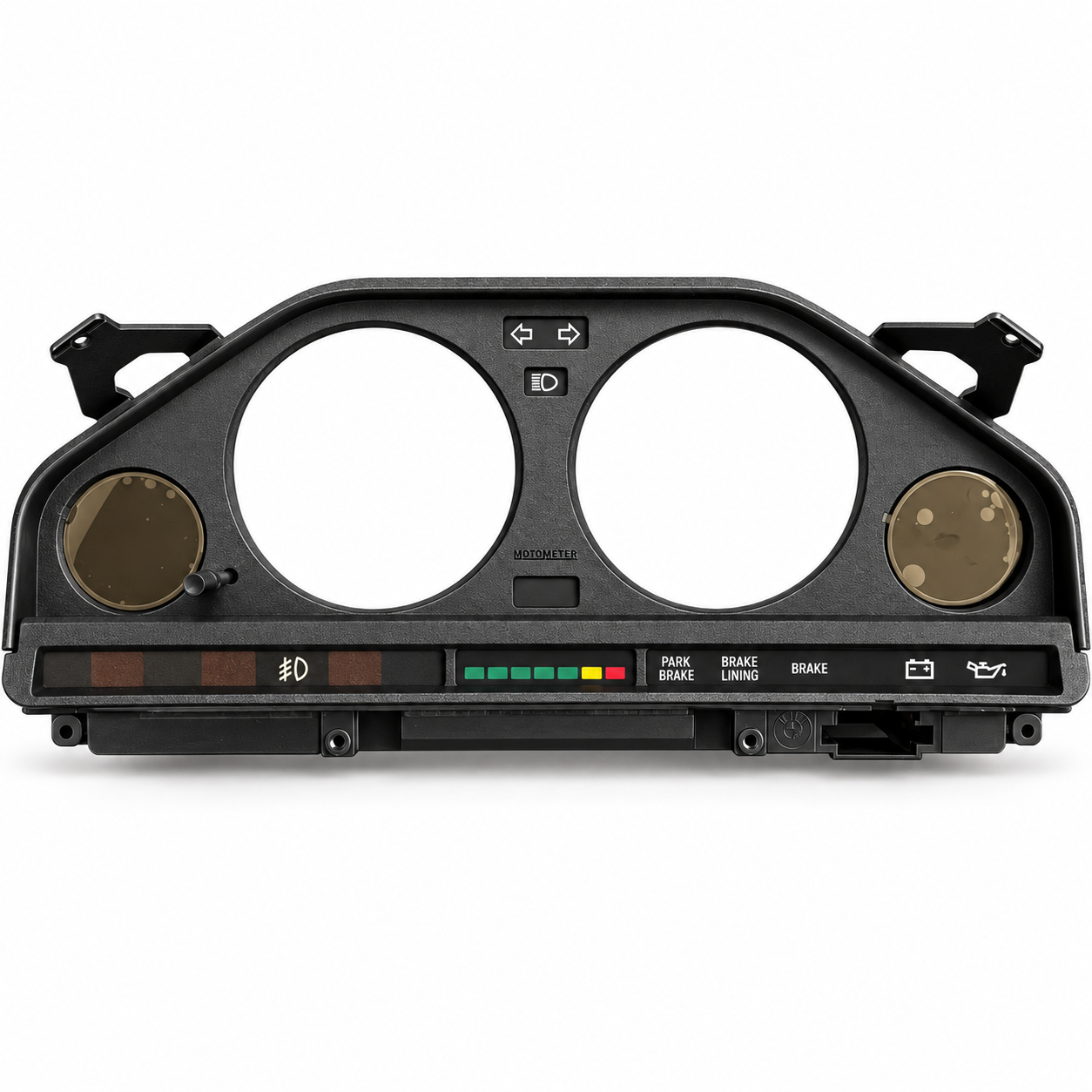

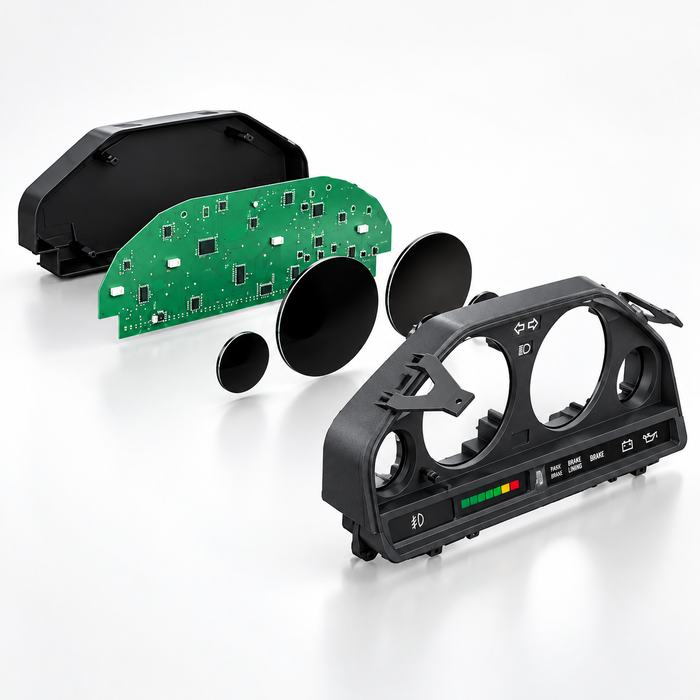

• Dedicated replacement assembly: purpose-built housing and OEM-style connector interface; no original cluster exchange required.
• Configurable ECU integration: two independent CAN Bus networks with selectable ECU, TCU and speed data sources, including configurable ECU selection and CAN baud rate.
• For stock or modified builds: compatible OEM and aftermarket ECU data integration, subject to model-specific validation and appropriate CAN wiring.
• Designed for longevity: LED-backlit LCD technology rather than OLED, selected with prolonged automotive heat exposure, burn-in resistance and service life in mind.

Display, gauges and customisation

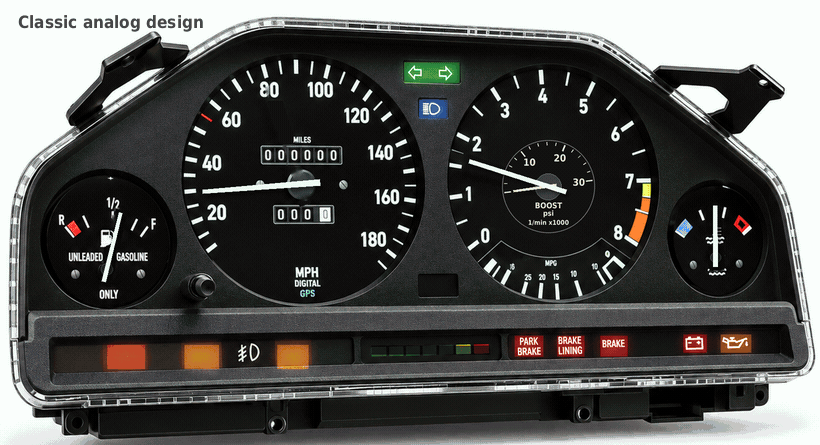

• Classic OEM-inspired digital gauge faces.

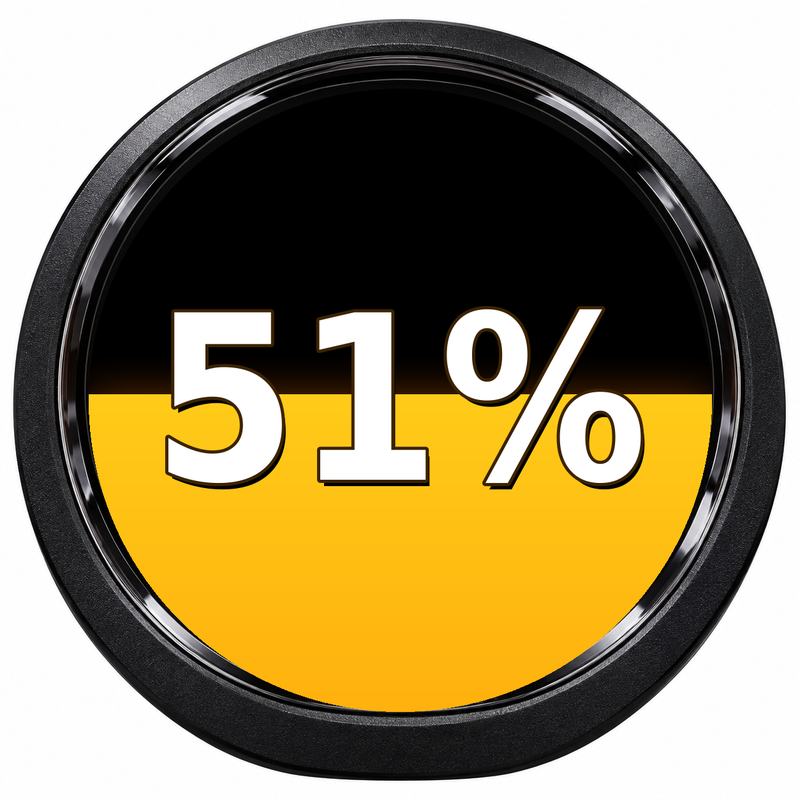

• Custom wallpapers, screen designs, display setups and selectable vehicle readings.
• Custom gauge themes and additional designs (in testing; not guaranteed at initial release).
• Configurable engine redline and warning zones.
• MPH or KM/H speed display; °F or °C temperature display.
• Automatic and manual brightness control through the display or compatible factory control.
• Multiple language support and real-time clock.

ECU, TCU, CAN Bus and vehicle signals

• Two independent CAN Bus networks for supported vehicle and powertrain data connections.
• Configurable data source selection for ECU, TCU and vehicle speed.
• User-selectable supported ECU profiles and configurable CAN baud rate.
• Compatible aftermarket and OEM ECU data integration; available channels depend on the connected control units, configuration and wiring.
• Direct tachometer and vehicle-signal inputs.
• Differential speed input with speed calibration.
• Six analog sensor inputs, two dedicated to temperature.
• Two outputs for compatible relay-control applications such as fans or pumps; correct external electrical protection and installation are required.
• Cruise-control-equipped vehicle compatibility, subject to the existing system and validated wiring; the cluster does not supply a standalone cruise-control system.

GPS, performance and data logging

• GPS/GNSS speed and positioning.
• Lap timing with approximate track-proximity detection (around 3 km / 1.8 miles from a recognised track); supported tracks and final behaviour subject to release validation.
• G-force data.
• 256 MB onboard flash memory for diagnostic and data logs.
• Wireless log downloads and microSD expandable storage.

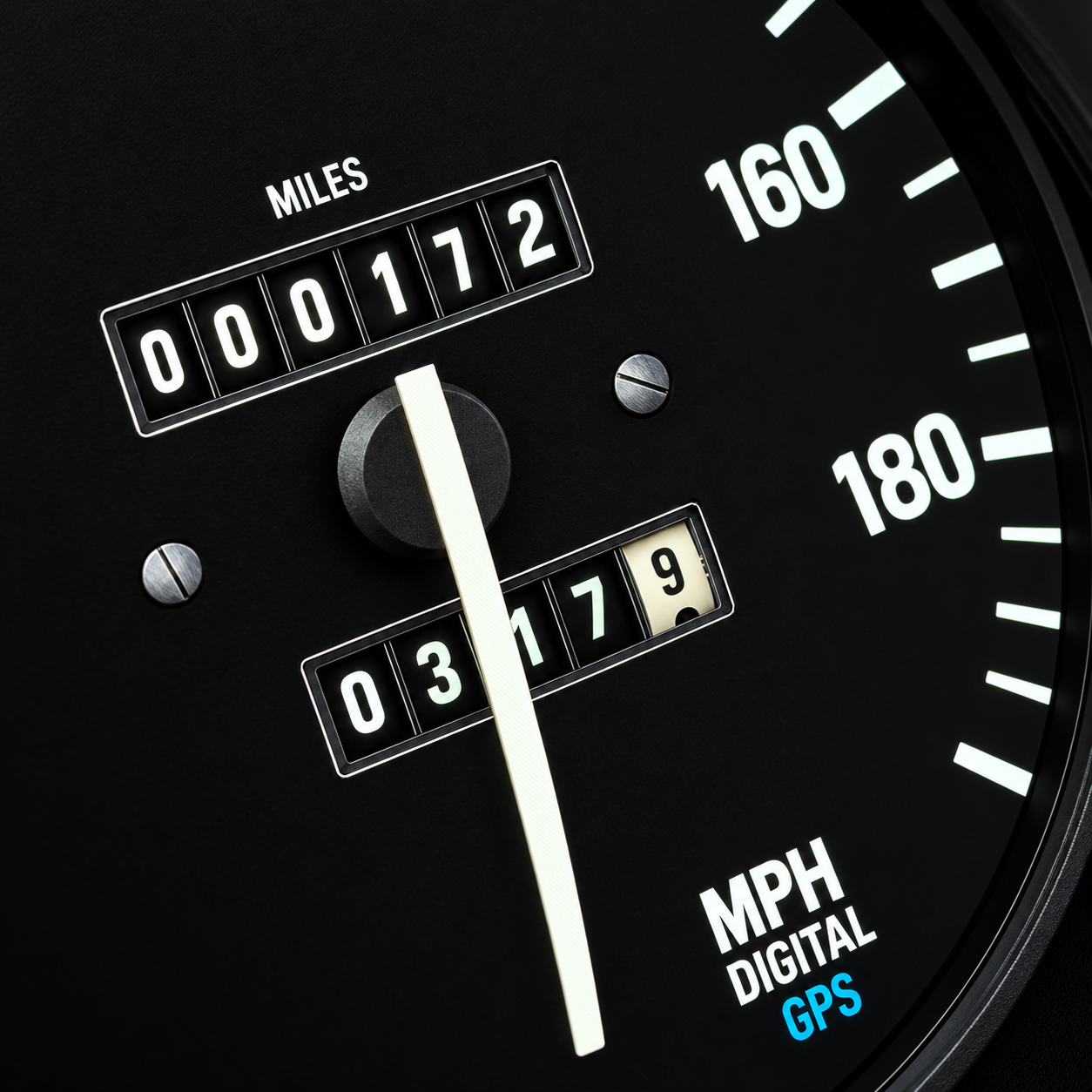

• Odometer and trip memory.
• One-time initialisation of the vehicle’s accurate existing odometer mileage with persistent non-volatile storage; mileage must reflect the vehicle’s true recorded distance and applicable law.

Connectivity and firmware

• Wi-Fi connectivity.
• Bluetooth Classic and Bluetooth Low Energy (BLE).
• Over-the-air (OTA) firmware-update capability and USB-C programming / diagnostics.
• Bluetooth radar-detector support for compatible Uniden / Escort models; verify supported models before purchase.
• Custom smartphone companion app (in testing).
• Smartphone alerts (in testing).
• TPMS integration (in testing).
• Expansion interface for future modules; future accessories and functions are not included unless separately confirmed.

LCD display technology: designed for an automotive environment

The developer has selected an LED-backlit LCD display instead of OLED because of concerns about long-term exposure to heat and sunlight, OLED image retention/burn-in, and service life in an instrument-panel installation. LED-backlit LCD technology can have a nominal backlight life of 40,000 hours or more depending on the panel and operating conditions; this figure is a general technology reference, not a guaranteed lifetime of this specific product. Final panel, environmental test and brightness specifications should be confirmed in the production datasheet.

Real installation example: BMW E30 with Link Fury X ECU

A customer with a right-hand-drive BMW E30 coupe, Mitsubishi 4G63T Evo 6 engine swap and Link Fury X standalone ECU asked about replacing a Haltech IQ3 Street dash. The developer explained that a custom plug-in patch harness is not required for the intended setup: connect the E30 factory cluster connectors, wire the Link ECU CAN Bus to the digital cluster, then select the matching ECU profile/settings in the cluster. This is an example of the intended integration method, not a guarantee of zero additional wiring. CAN wiring is additional work and the customer’s specific ECU configuration, message protocol, powertrain sensors and available data require confirmation.

Reliability and safety features

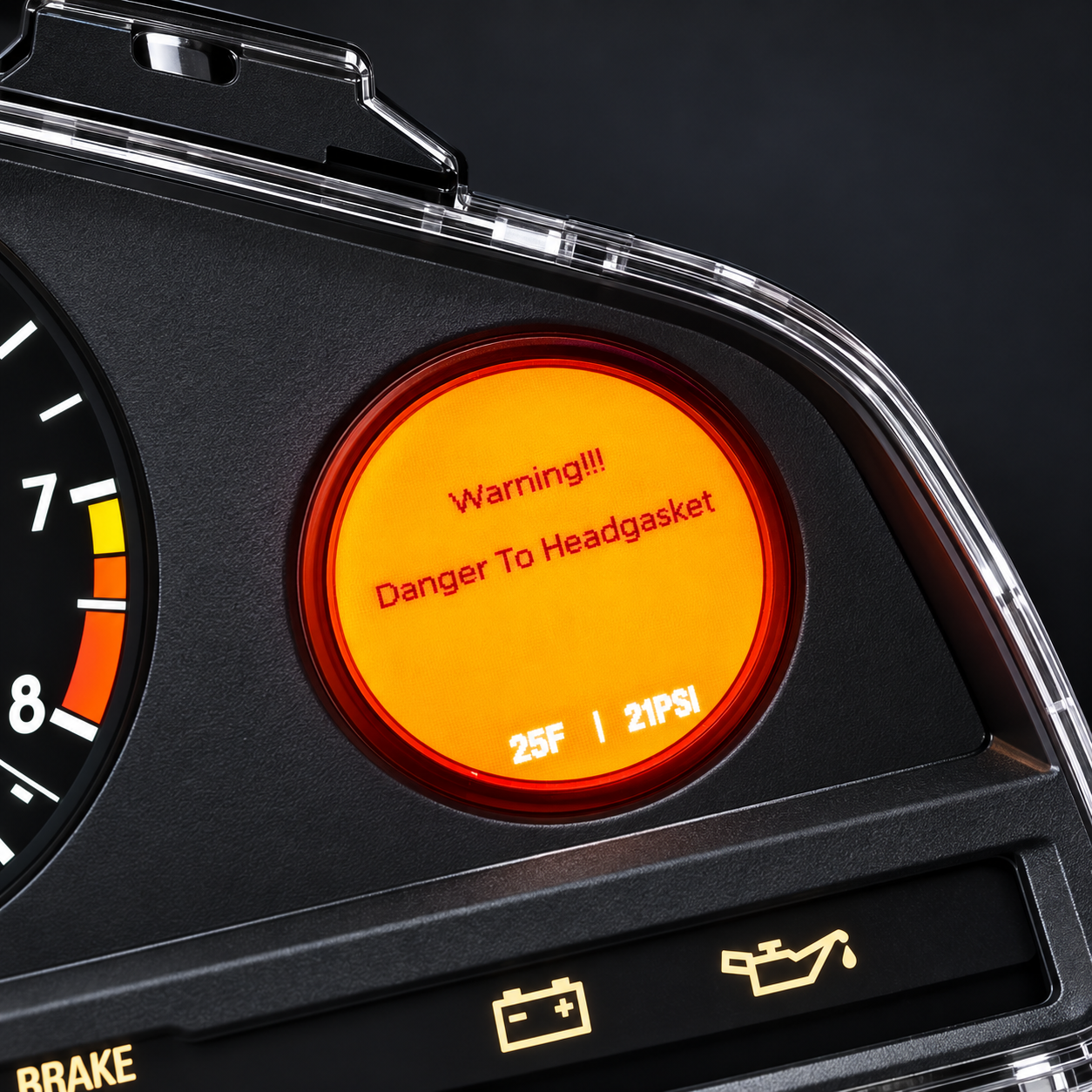

• Audible warnings and alerts.
• Automotive-grade power protection.
• Intelligent ignition shutdown.
• Configurable warning zones and diagnostic storage.

Warranty and support

Two-year product warranty and lifetime technical support, together with a lifetime warranty on craftsmanship, as communicated by the developer. The lifetime craftsmanship warranty relates to qualifying defects in workmanship; it must not be interpreted as an unlimited warranty on all electronic parts or normal wear. The final written terms must define coverage, exclusions, claim procedures, remedy, geographic applicability and the meaning of “lifetime” before launch. Statutory consumer rights remain unaffected.

Vehicle fitment and package contents

Primary application: BMW 3 Series E30. Exact supported years, body styles, right-hand-drive/left-hand-drive configurations, M3 variants, factory systems and ECU lists are subject to published compatibility confirmation. The dedicated cluster housing and OEM-style connection approach are part of the proposed package. Final box contents, included sensors/cables, optional accessories and installation instructions will be published before orders are enabled.

Pre-order, payment and delivery

Product condition: New, pre-release production item. Payment: 100% at checkout. Availability: Pre-order; not in stock and not a conventional backorder. Estimated release/dispatch: To be confirmed before accepting payment. Dispatch and shipping charges will be shown or disclosed before checkout, as applicable. Items under testing may be delayed or omitted from the initial software release unless expressly confirmed as included in the sale.

Change-of-mind cancellations: Confirmed pre-orders are intended to be non-cancellable and non-refundable solely for change of mind, only to the extent permitted by applicable law. This does not restrict mandatory customer rights relating to defects, non-delivery, material misdescription, or other legal remedies. Full product-specific terms must be shown and expressly accepted at checkout.

Frequently asked questions

Do I need to send in my original E30 cluster?

No. This product is designed as a complete replacement assembly with its own housing.

Does the cluster work with aftermarket ECUs?

The architecture supports compatible aftermarket ECU connections via CAN Bus and other inputs. Supported ECU profiles, CAN messages, wiring and available readouts must be confirmed for each installation.

Can I change the ECU or CAN baud rate?

Yes. The developer confirms ECU selection and baud-rate settings are configurable, as are the selected ECU, TCU and speed data sources.

Will it work with a Link Fury X and 4G63T swap?

The developer describes a connection method using the E30 factory cluster plugs plus an additional CAN Bus connection from the Link ECU, followed by selecting the ECU in settings. Validate the exact integration before purchase.

Can I keep my existing mileage?

The cluster is intended to support a one-time entry of the vehicle’s true accumulated mileage with persistent storage thereafter.

Why LCD instead of OLED?

The developer prioritises automotive heat exposure, reduced burn-in risk and expected longevity; the display uses LED-backlit LCD technology.

Is cruise control supported?

The cluster is intended to be compatible with supported cruise-control-equipped E30 configurations; the vehicle’s existing cruise-control system remains necessary.

Are all app, TPMS and custom themes ready?

No. App functions, smartphone alerts, TPMS integration and selected custom themes are still in testing and should not be assumed included in the initial release.

When will my order ship?

A confirmed estimated shipping window will be announced before pre-order payments are enabled.
