Description

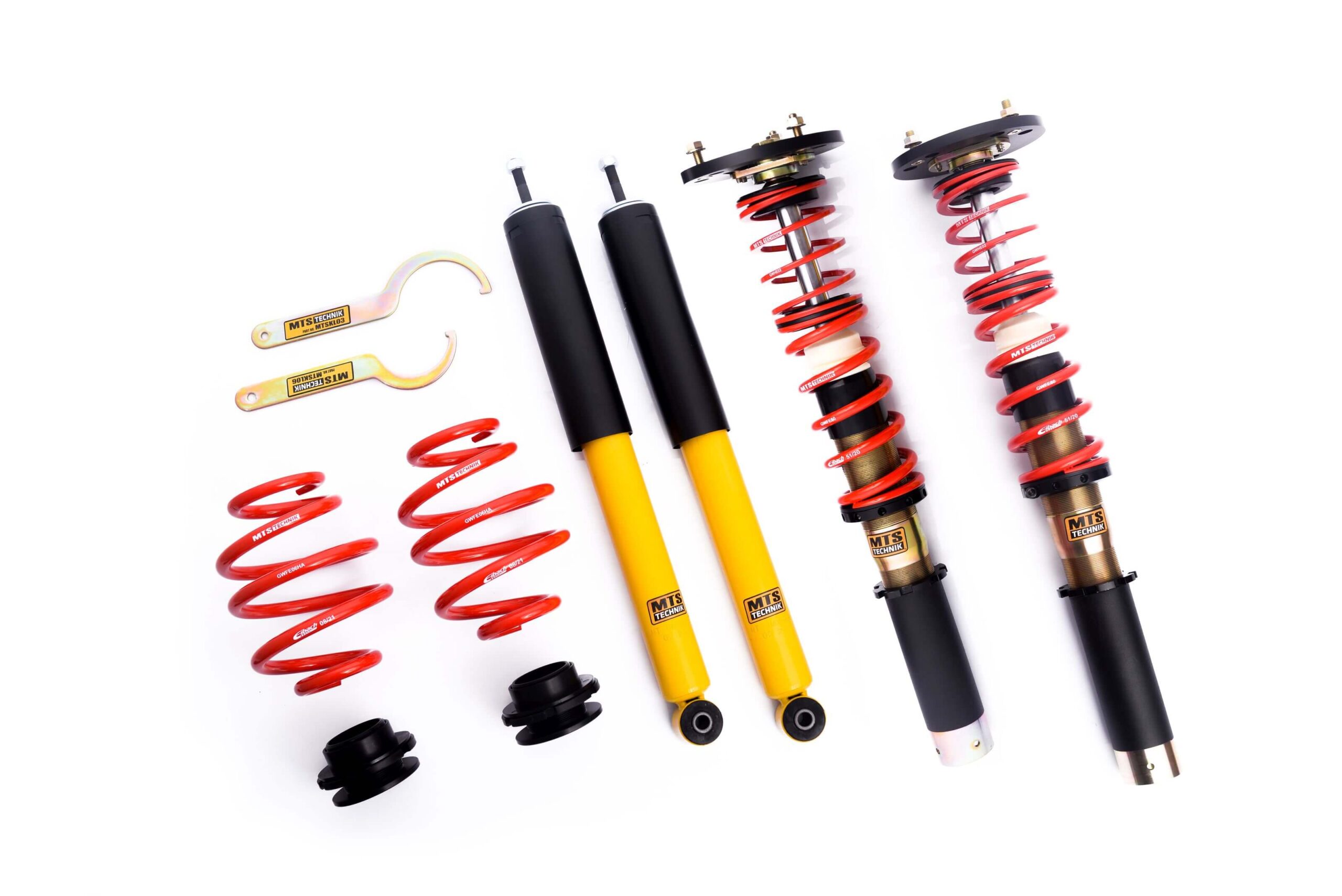

Coilover Suspension Comfort by MTS Technik
Designed for BMW E30, this coilovers product is structured from the original supplier data with grouped BMW fitment, technical details, and compatibility information to support confident product selection.
Key Features
- Height-adjustable suspension setup
- Performance-focused handling improvement
- Suitable for drivers seeking a sportier stance and response
Technical Specifications
| Brand | MTS Technik |
|---|---|
| Part Number | MTSGWBM15-C |
| Product Type | Coilovers |
| Lowering Front | 25 – 90 mm |
| Lowering Rear | 25 – 60 mm |
| Additional Adjustment Front | + |
| Max Axle Load Front | -865 kg |
| Max Axle Load Rear | -1030 kg |
| TUV Certificate | no |
Vehicle Compatibility
| Make | Model | Engine | Year |
|---|---|---|---|
| BMW | 3 (E30) | 315 / 316 / 316 i / 318 i / 318 is / 320 i / 323 i / 324 d / 324 td / 325 e 2.7 / 325 i | 1982-1991 |
| BMW | 3 Convertible (E30) | 318 i / 320 i / 325 i | 1985-1993 |
| BMW | 3 Touring (E30) | 316 i / 318 i / 320 i / 324 td / 325 i | 1987-1994 |
Fitment Notes
- Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
- Not for 4×4.
- If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
- During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
- Independent height adjustment at the lower brackets on the front dampers.

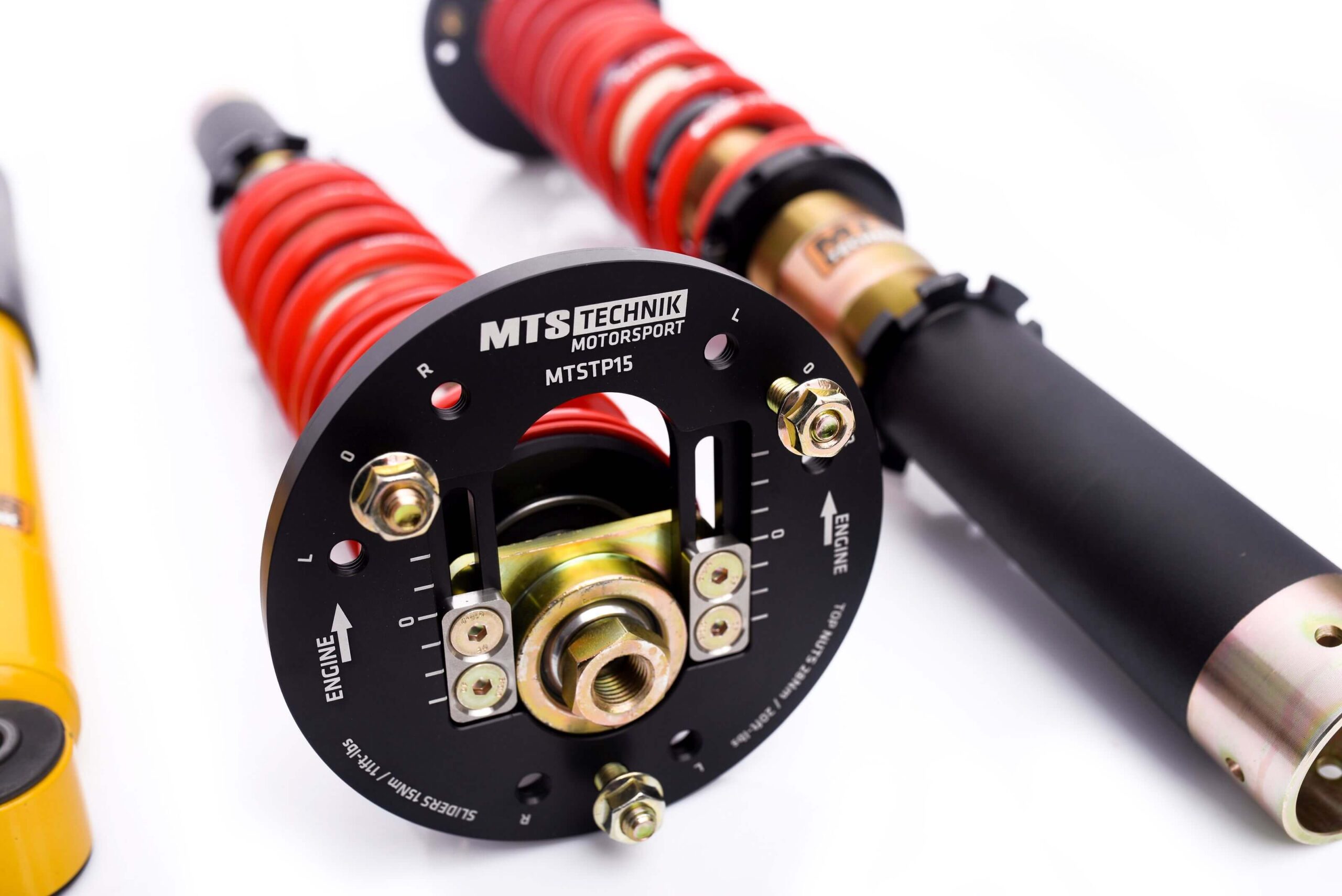

- Set includes 2x upper "camber plates" on the front axle.
- The installation requires the use of OE front struts – they should be cut and welded as described in the attached manual.
- Including M-Technik.
- Rear thread adjustment block is mounted on the top.
- For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
