Description

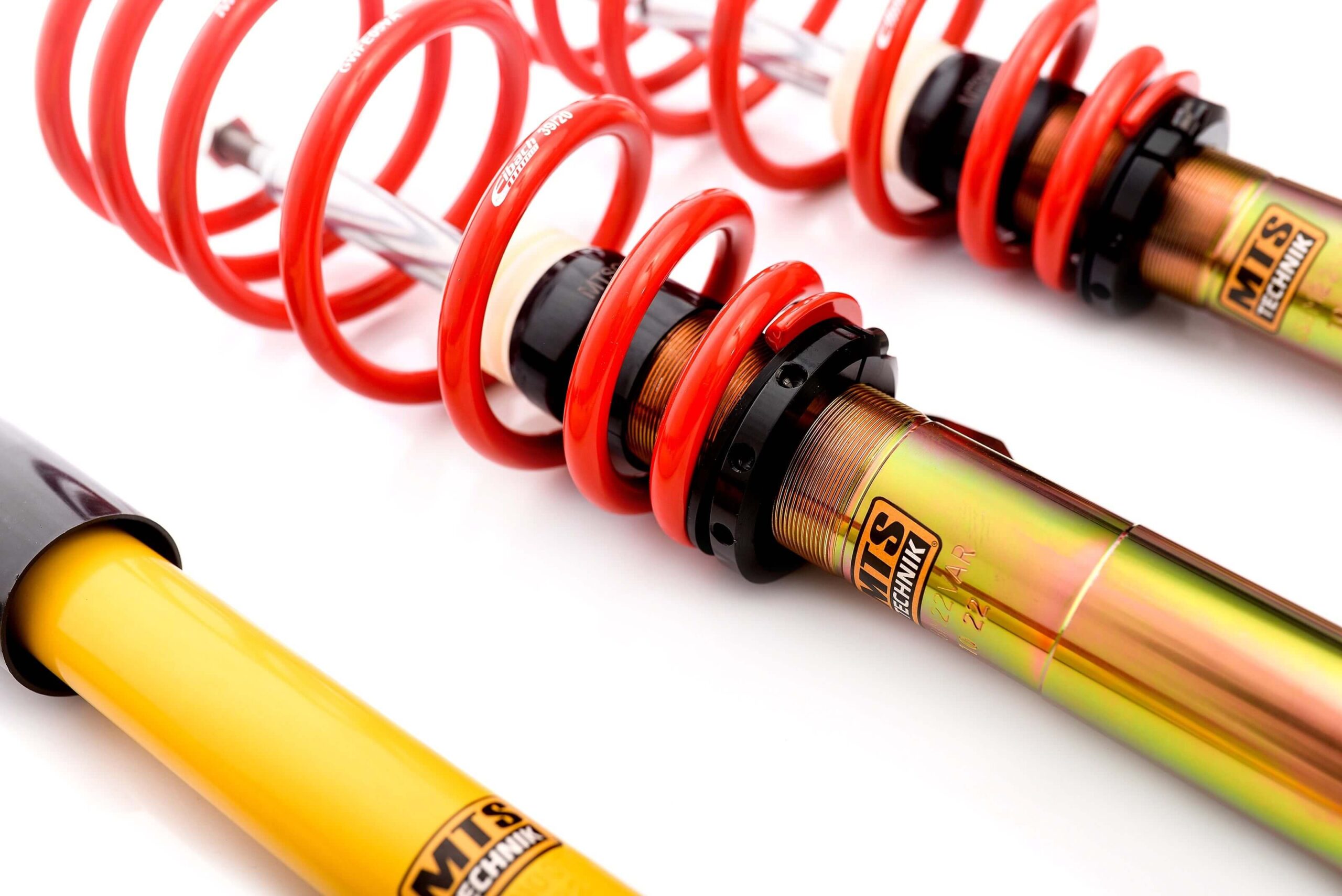

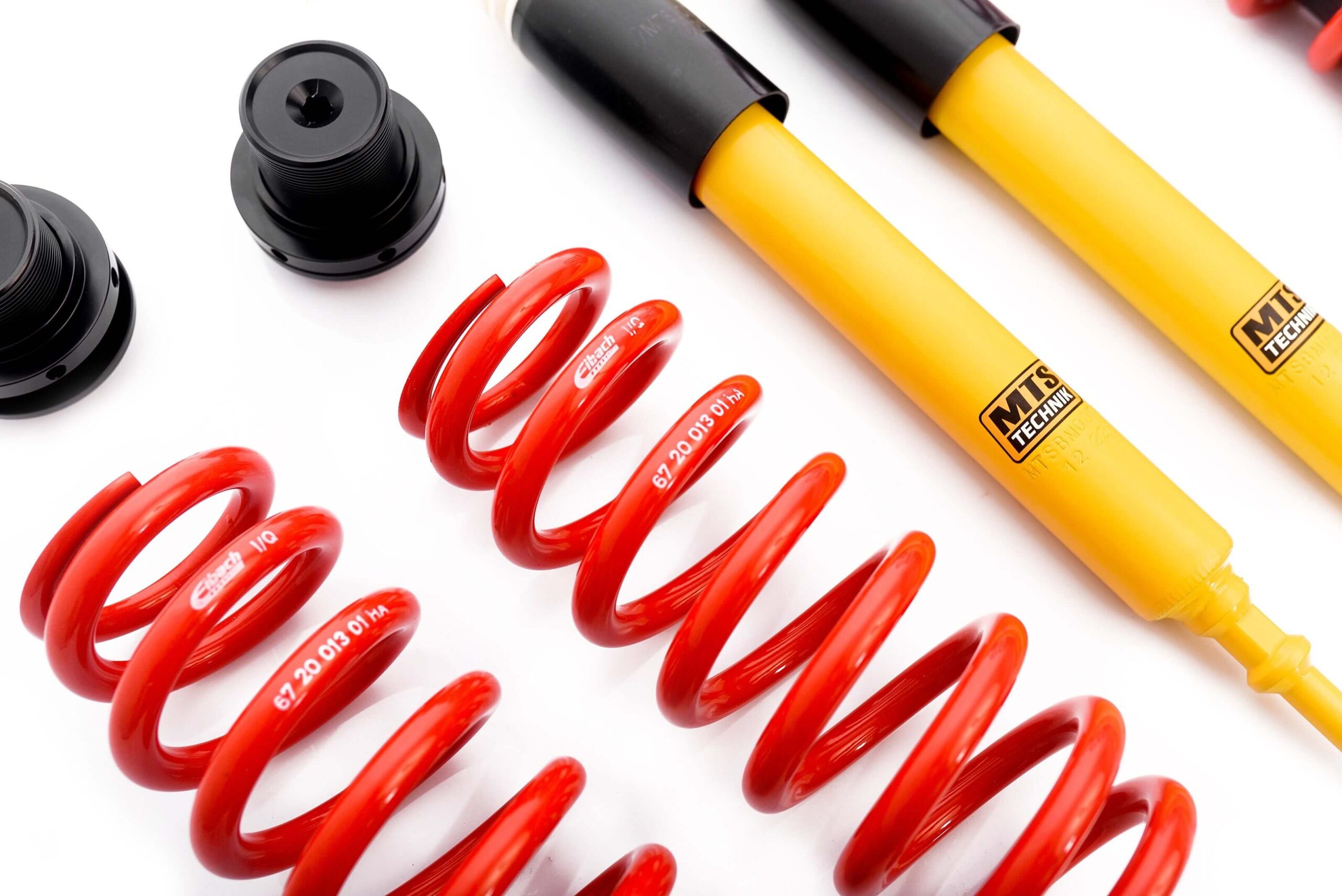

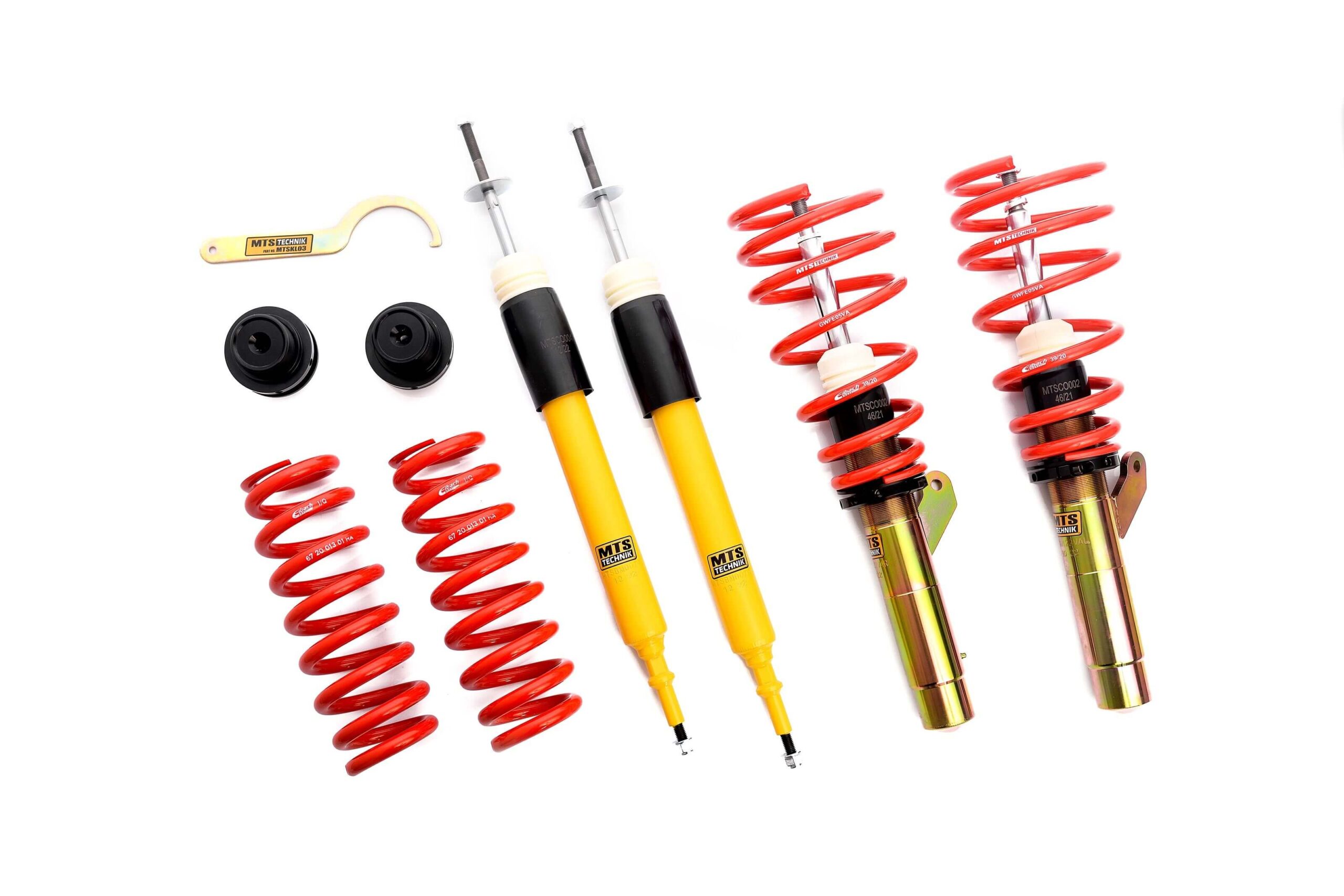

Coilover Suspension Comfort by MTS Technik
Designed for BMW E81, BMW E87, BMW E88, BMW E82, this coilovers product is structured from the original supplier data with grouped BMW fitment, technical details, and compatibility information to support confident product selection.
Key Features
- Height-adjustable suspension setup
- Performance-focused handling improvement
- Suitable for drivers seeking a sportier stance and response
Technical Specifications
| Brand | MTS Technik |
|---|---|
| Part Number | MTSGWBM12-C |
| Product Type | Coilovers |
| Lowering Front | 25 – 50 mm | 20 – 50 mm |
| Lowering Rear | 30 – 65 mm |
| Max Axle Load Front | -945 kg | -965 kg | -1090 kg | -1035 kg |
| Max Axle Load Rear | -1070 kg | -1120 kg | -1135 kg | -1110 kg |
| TUV Certificate | yes |
Vehicle Compatibility
| Make | Model | Engine | Year |
|---|---|---|---|
| BMW | 1 (E81) | 116 d / 116 i / 118 d / 118 i / 120 d / 120 i / 123 d / 130 i | 2006-2012 |
| BMW | 1 (E87) | 116 d / 116 i / 118 d / 118 i / 120 d / 120 i / 123 d / 130 i | 2004-2011 |
| BMW | 1 Convertible (E88) | 118 d / 118 i / 120 d / 120 i / 123 d / 125 i / 128 i / 135 i | 2007-2013 |
| BMW | 1 Coupe (E82) | 118 d / 120 d / 120 i / 123 d / 125 i / 135 i | 2007-2013 |
| BMW | 3 (E90) | 316 d / 316 i / 318 d / 318 i / 320 d / 320 i / 320 si / 323 i / 325 d / 325 i / 330 d / 330 i / 335 d / 335 i | 2004-2011 |
| BMW | 3 Coupe (E92) | 316 i / 318 i / 320 d / 320 i / 323 i / 325 d / 325 i / 330 d / 330 i / 335 d / 335 i | 2006-2013 |
Fitment Notes
- Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
- Not for 4×4.
- If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
- During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
- In some cases it might be necessary to dismount the rear adjustment to achieve the maximum lowering.
- Rear thread adjustment block is mounted on the top.
- For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
